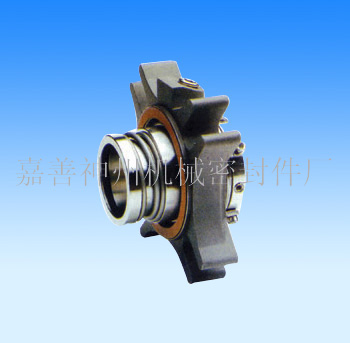

Products Name:Model SZ358 mechanical seal

Products Details:Container type / single end / arbitrary direction / rubber bellows / non - equilibrium type mechanical seal is used in conventional circulating pump packing box, in strict accordance with the face pressure completely preassembled. The sealing surface of the structure of high quality materials can be widely used in a variety of conditions, without complex blending and preparation.

Operating parameters:
dN=25...75mm 1" ...2.625"；P1=12 (16) bar；t=-20...90 (140)degree;Vg=10m/s；Axial movement:±0.5mm

Material combination:
Seal face:Carbon (B),silicon；carbide (Q1)；Seat:silicon carbide (Q1)；Bellows/profile ring/O-ring:Viton(V),EPDM (E);cOMPONENTS:1,4401 (G)
