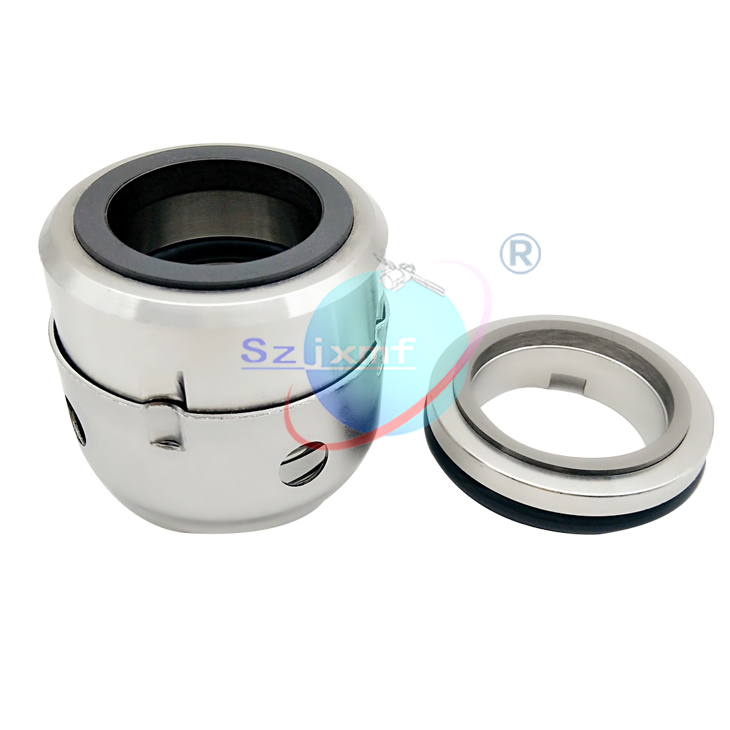

Products Name:GB GY type mechanical seal

Products Details:Gy type is built-in, single spring, sleeve drive, balance type. The seal is a typical mechanical seal for large springs. It is a widely used standard balanced mechanical seal, which allows materials and end face combinations to meet a wide range of requirements.

Operating parameters:
Pressure: 0 ~ 0.8Mpa, temperature: 0 ~ 80 DEG C, maximum speed: 3000r/min, shaft diameter: 25~100, medium: 1Gx, oil, gasoline, 2Gx, weak acid, weak base, 3Gx, a small amount of particles, impurities

Material combination:

Name	Code
Cemented carbide (YG6) - graphite impregnated phenolic resin	1Gy
Carbide (YG6) graphite impregnated furan resin	2Gy
Cemented carbide (YG6) - cemented carbide (YG6)	3Gy
